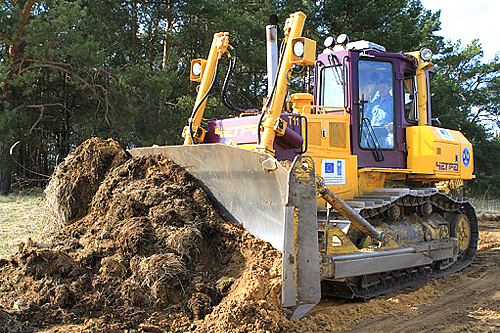

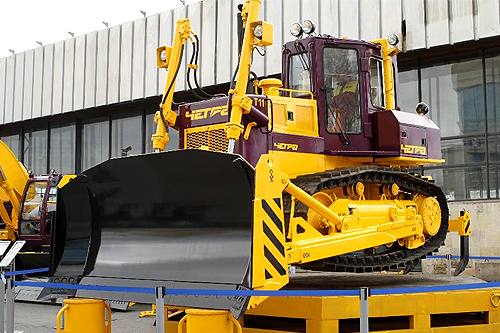

Chetra T11
CHETRA T11 - is used in industrial, oil and gas, hydraulic engineering and road construction. Has modifications for forestry and land reclamation. Combines maneuverability, productivity and versatility. The T11 bulldozer has a special modification with a transmission that ensures ground movement over the entire speed range without rupture of traction and power loss. In combination with the leveling system, this machine becomes an ideal planner of road surfaces and embankments.
Part number:
Supplier:
"Service of Industrial Machines" LLCDescription
TECHNICAL CHARACTERISTICS OF BULLDOZER CHETRA T-11
Engine model YaMZ-236ND-2 / QSB6,7-C204
Operating diesel engine power, kW (hp) 136 (185) - 137 (187)
Fuel tank, l 285
Operating weight (with attachments), kg 20 870 (23 070)
Specific pressure on the ground of the tractor with attachments (standard / meliorative), kgf / cm2 0.79 (0.42)
Track width of standard tractor / width of track of ameliorative tractor, mm 510/760
Ground clearance, mm 509
OPTIONALLY INSTALLED ACCESSABLE EQUIPMENT
Hemispherical blade, L x W / m 3 4060 × 1475 / 4.33
Direct blade with mechanical rotation, L x W / m 3 3650x1168 / 4.0
Straight blade, L x W / m3 4188x1150 / 4,3
Direct rotary hydraulic dump blade (VPAT), L x W / m3 4036x1315 / 4.48
Spherical blade, L x W / m 3 -
Coal blade, L x W / m 3 -
A blade of a rake, д х ш / м3 -
Number of ripper teeth, pcs. 1, 3, 7-tooth ripper
The possibility of installing the winch, (pulling force, tons) Yes (15 tons)
OVERALL DIMENSIONS OF THE T-11 TRACTOR WITHOUT EQUIPMENT
Length (standard / meliorative), mm 4470/4545
Width (standard / meliorative), mm 2390/3060
Height (standard / meliorative), mm 3412
