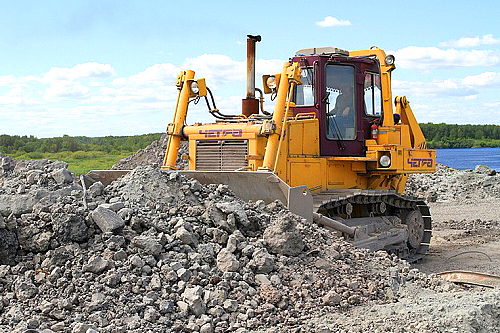

Chetra T15
CHETRA T15 is an average traction class vehicle for industrial, oil and gas, hydraulic engineering and mining. The three-point semi-rigid suspension with the axle of trolley swinging out and micro suspension of the tension wheel provides high traction and traction, reduction of impact loads on the running system and improvement of the operator's working conditions.
Part number:
Supplier:
"Service of Industrial Machines" LLCDescription
Engine model YMZ-238ND7-1 / QSС8,3-C245
Operating diesel engine power, kW (hp) 175 (238) - 180 (245)
Fuel tank, l 400
Operating weight (with attachments), kg 28 020 (30 500)
Specific pressure on the ground of the tractor with attachments (standard / meliorative), kgf / cm2 0.87 (0.55)
Track width of standard tractor / width of track of ameliorative tractor, mm 560/910
Ground clearance, mm 503
OPTIONALLY INSTALLED ACCESSABLE EQUIPMENT
Hemispherical blade, L x W / m 3 3794x1544 / 6.8 / 4100x1542 / 9.2 (meliorat.)
Straight blade with mechanical rotation, L x W / m 3 -
Straight blade, L x W / m3 3880x1530 / 5.8
Direct rotary hydraulic dump (VPAT), L x W / m 3 -
Spherical blade, L x W / m 3 4058x1555 / 8.5
Coal blade, L x W / m 3 -
A blade of a rake, д х ш / м3 -
Number of ripper teeth, pcs. 1, 3-tooth ripper
The possibility of installing the winch, (pulling force, t.) Yes (30 tons)
OVERALL DIMENSIONS OF THE T-15 TRACTOR WITHOUT ACCESS EQUIPMENT
Length (standard / meliorative), mm 4500/4900
Width (standard / meliorative), mm 2560/3010
Height (standard / meliorative), mm 3709
