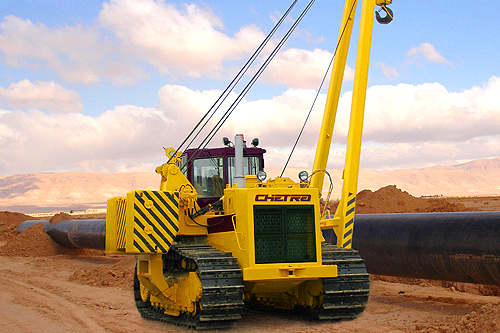

Chetra TG-511
The biggest russian pipelayer CHETRA TG-511 is the best choise for those who need an advance machine with maximum lifting capacity. It can be used for laying pipes of diameter from 900 to 1420mm. This machine features fully electronic controls.
Part number:
Supplier:
"Service of Industrial Machines" LLCDescription
TECHNICAL PARAMETERS OF CHETRA TG-511 PIPELAYER
Engine model Cummins QSX15-C500
Operating power, kW (h.p.) 350 (476)
Operating weight with YaMZ / CUMMINS engine, kg 64 000
Lifting capacity with counterweight extended (at boom reach 1,22m / 2.5m) 104,5 / 51
Lifting / lowering speed, m/min 4,5-16
Boom length standart (long), m 8,9
Track shoe width, mm 800
Forward / backward speed, km/h 12,7/15,1
OVERALL DIMENSIONS
Length, mm 6 150
Width, mm 5 470
Height with standart (long) boom up, mm 10 160
Engine model Cummins QSX15-C500
Operating power, kW (h.p.) 350 (476)
Operating weight with YaMZ / CUMMINS engine, kg 64 000
Lifting capacity with counterweight extended (at boom reach 1,22m / 2.5m) 104,5 / 51
Lifting / lowering speed, m/min 4,5-16
Boom length standart (long), m 8,9
Track shoe width, mm 800
Forward / backward speed, km/h 12,7/15,1
OVERALL DIMENSIONS
Length, mm 6 150
Width, mm 5 470
Height with standart (long) boom up, mm 10 160
