HYGROSCAN MOISTURE GAS ANALYZER
HygroScan process gas analyzers are explosion-proof and their purpose is to automatically determine water vapor content and further calculate water dew point (WDP) in gaseous media, including natural gas according to ISO 18453, ISO 6327.
Structural features
Analyzer operating principle: sorption capacity;
WDP is calculated for gas operating pressure and may be recalculated based on required pressure value, due to integrated analyzed gas pressure sensor;
Measurements are done at sample operating pressure up to 25 MPa;
All analyzer models are explosion-proof.
Part number:
Supplier:
STF "BACS" LLCDescription
Moisture gas analyzers are available in several variations:

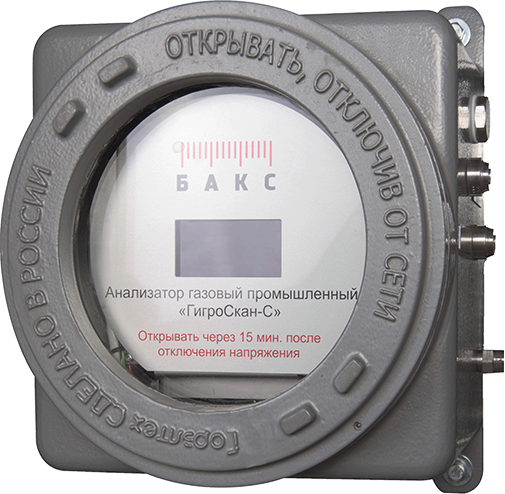

1. Stationary Process Gas Analyzer HygroScan-S is a reliable and precise stationary process hygrometer with a broad range of extra options.
FEATURES
Continuous and intermittent (to spare analyzed gas) operation modes with integrated electromechanical valves;
Analysis on up to two streams in alternate mode;
Measurement results are stored in the instrument memory;
Measurement results are displayed in selected units, as well as analyzer status;
Broad operation temperature range: from -40 to +50°С due to thermostat control of the sensor;
Low cost of purchase, ownership and maintenance

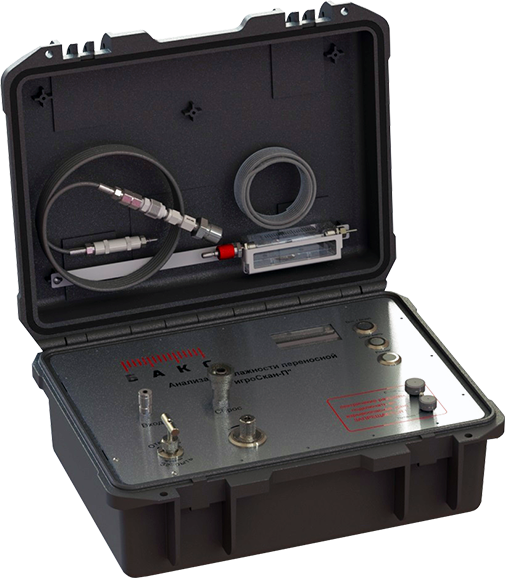

2. Portable Gas analyzer HygroScan-P is an explosion-proof, compact, user-friendly, standalone and precise instrument for measuring moisture content in natural gas at remote facilities and in laboratories.
APPLICATION
Online moisture content and WDP monitoring in CNG, impulse gas and other combustible gas in the field, including during pipeline commissioning and after repair operations;
Portable moisture content monitoring system for various gaseous media, in thermal power, food industry, chemical and oil and gas industries.
FEATURES
Portable moisture content monitoring system for various gaseous media;
Measurement ranges and errors as in stationary analyzer;
Prolonged standalone operation powered from accumulator even in cold environment, charging from a car power outlet and from power mains also possible;
Explosion-proof design, Ex mb;
No additional gases and sample conditioning needed;
Compact size and low weight.

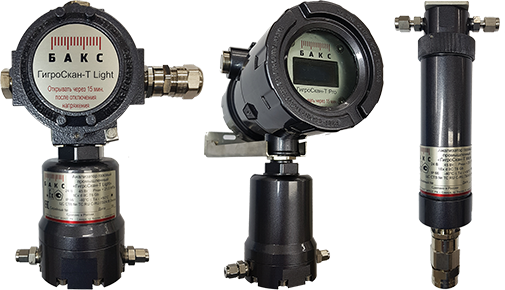

3. Hygroscan-T Pro, Hygroscan-T Light, Hygroscan-T Micro Transmitters
HygroScan-T gas analyzer is designed for real-time analysis and has the same functions as a stationary model.
FEATURES
Continuous analysis;
Data transmission to external devices;
Display and control button (only for PRO version);
Easy to operate and to maintain;
Low cost of purchase, ownership and maintenance;
Low power consumption.
1. Stationary Process Gas Analyzer HygroScan-S is a reliable and precise stationary process hygrometer with a broad range of extra options.
FEATURES
Continuous and intermittent (to spare analyzed gas) operation modes with integrated electromechanical valves;
Analysis on up to two streams in alternate mode;
Measurement results are stored in the instrument memory;
Measurement results are displayed in selected units, as well as analyzer status;
Broad operation temperature range: from -40 to +50°С due to thermostat control of the sensor;
Low cost of purchase, ownership and maintenance
2. Portable Gas analyzer HygroScan-P is an explosion-proof, compact, user-friendly, standalone and precise instrument for measuring moisture content in natural gas at remote facilities and in laboratories.
APPLICATION
Online moisture content and WDP monitoring in CNG, impulse gas and other combustible gas in the field, including during pipeline commissioning and after repair operations;
Portable moisture content monitoring system for various gaseous media, in thermal power, food industry, chemical and oil and gas industries.
FEATURES
Portable moisture content monitoring system for various gaseous media;
Measurement ranges and errors as in stationary analyzer;
Prolonged standalone operation powered from accumulator even in cold environment, charging from a car power outlet and from power mains also possible;
Explosion-proof design, Ex mb;
No additional gases and sample conditioning needed;
Compact size and low weight.
3. Hygroscan-T Pro, Hygroscan-T Light, Hygroscan-T Micro Transmitters
HygroScan-T gas analyzer is designed for real-time analysis and has the same functions as a stationary model.
FEATURES
Continuous analysis;
Data transmission to external devices;
Display and control button (only for PRO version);
Easy to operate and to maintain;
Low cost of purchase, ownership and maintenance;
Low power consumption.
Specification
