Multipurpose helicopter Mi-38
The multirole Mi-38 can carry cargo and passengers, including VIPs, and can also be used as a search-and-rescue helicopter and flying hospital, as well as for offshore missions.
Part number:
Supplier:
Russian HelicoptersDescription
The Mi-38 can operate in a wide range of climates.
The technical solutions deployed in the Mi-38 give the helicopter superior maximum payload, passenger capacity and key performance indicators to other helicopters in its class.
The Mi-38 is fitted with a power plant with twin TV7-117V engines manufactured by Klimov JSC.
Performance:
Max. cruise Speed – 270 km/h
Max. speed – 300 km/h
Max. flight – 880 km
Hovering in ground effect (MTOW, ISA) – 3 500 m
Service ceiling (ISA) – 6 300 m
Weights:
Maximum takeoff weight – 15 600 kg
Max. cabin load – 5 000 kg
Max. external sling load – 5 000 kg
Dimensions:
Length – 20,41 m
Height – 5,71 m
Rotor diameter – 21,1 m
Passenger cabin volume – 29,5 ㎥
Capacity:
up to 30 persons in passenger configuration (PAX)

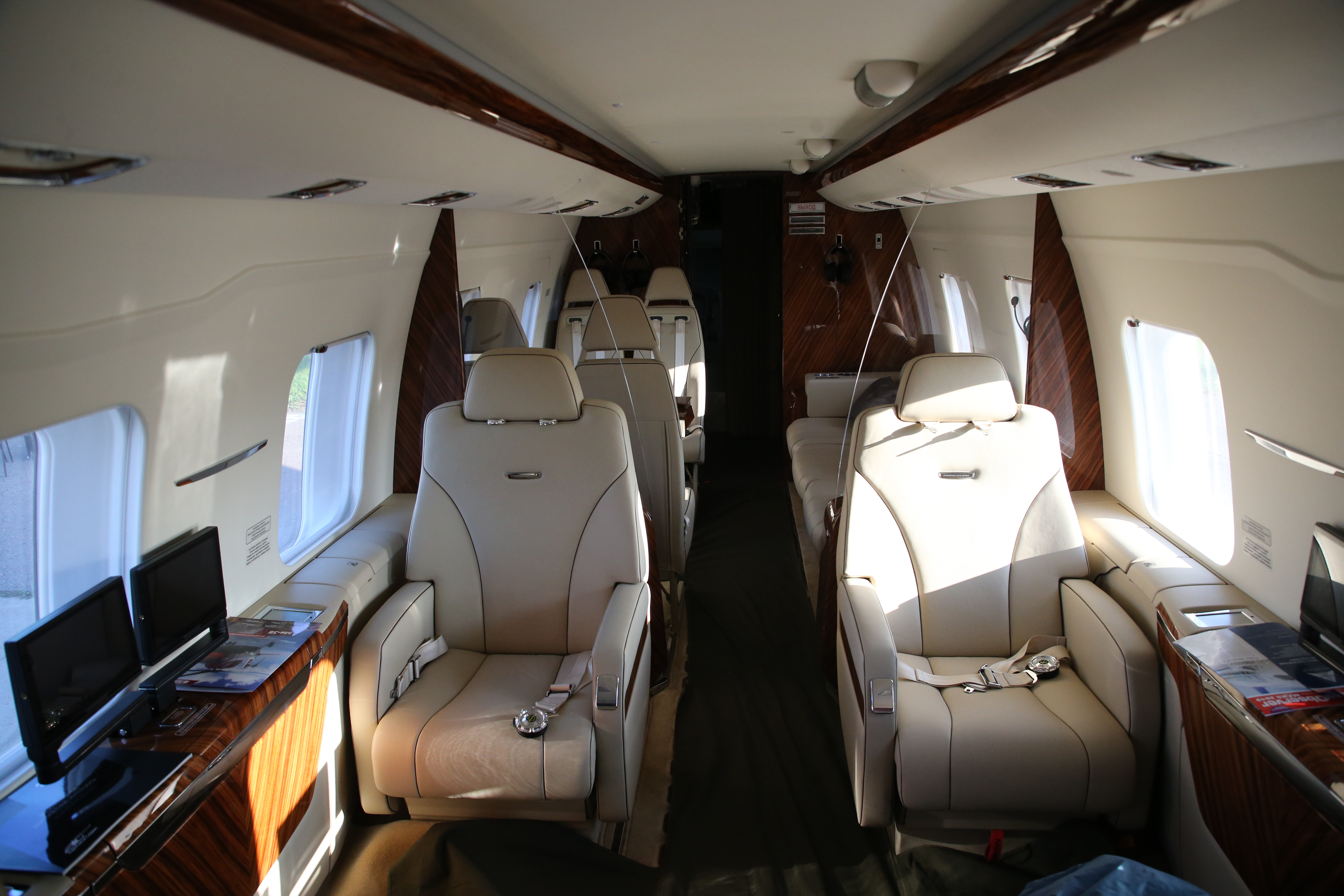

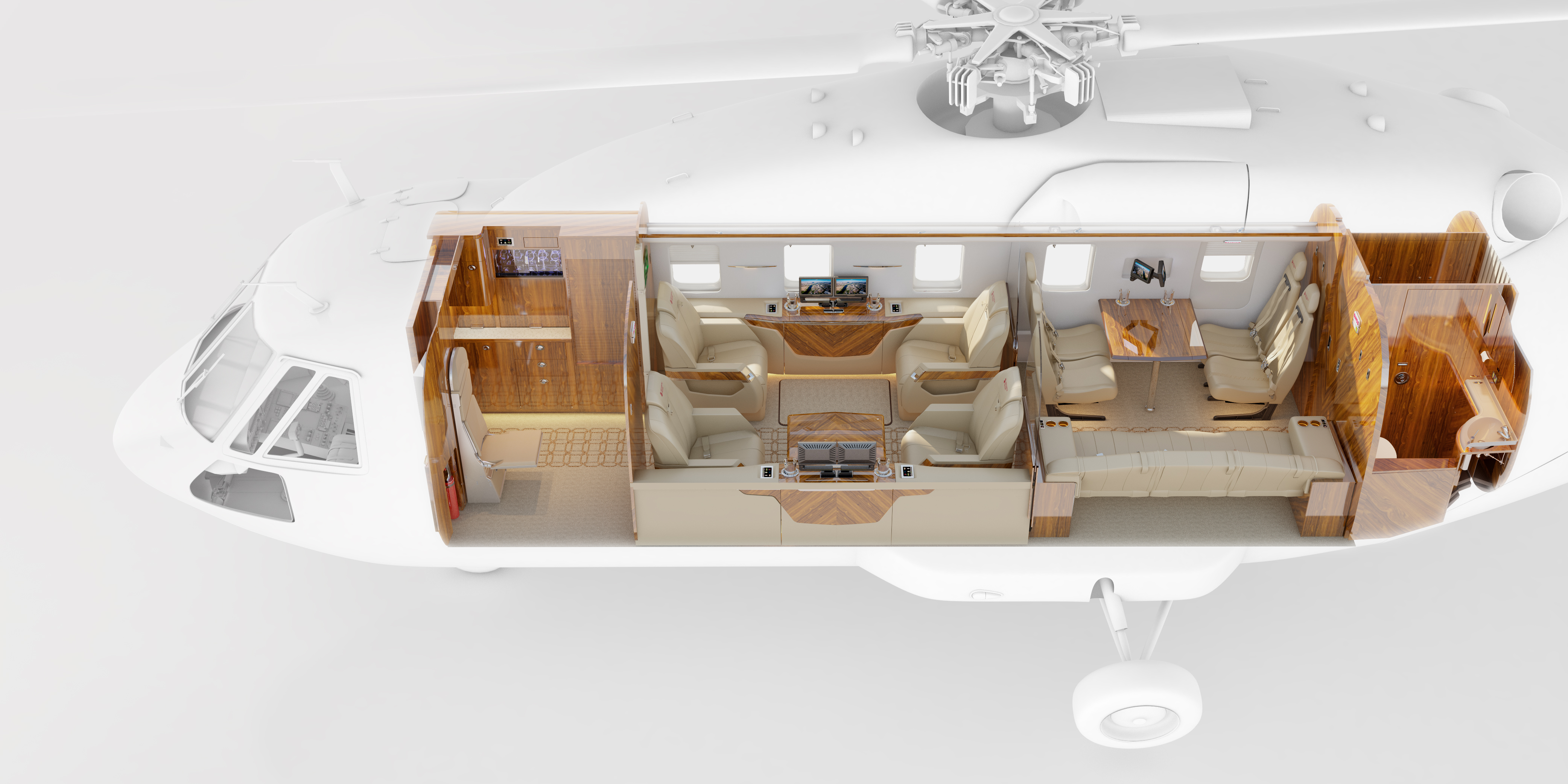

up to 12 persons in VIP configuration
The technical solutions deployed in the Mi-38 give the helicopter superior maximum payload, passenger capacity and key performance indicators to other helicopters in its class.
The Mi-38 is fitted with a power plant with twin TV7-117V engines manufactured by Klimov JSC.
Performance:
Max. cruise Speed – 270 km/h
Max. speed – 300 km/h
Max. flight – 880 km
Hovering in ground effect (MTOW, ISA) – 3 500 m
Service ceiling (ISA) – 6 300 m
Weights:
Maximum takeoff weight – 15 600 kg
Max. cabin load – 5 000 kg
Max. external sling load – 5 000 kg
Dimensions:
Length – 20,41 m
Height – 5,71 m
Rotor diameter – 21,1 m
Passenger cabin volume – 29,5 ㎥
Capacity:
up to 30 persons in passenger configuration (PAX)
up to 12 persons in VIP configuration
