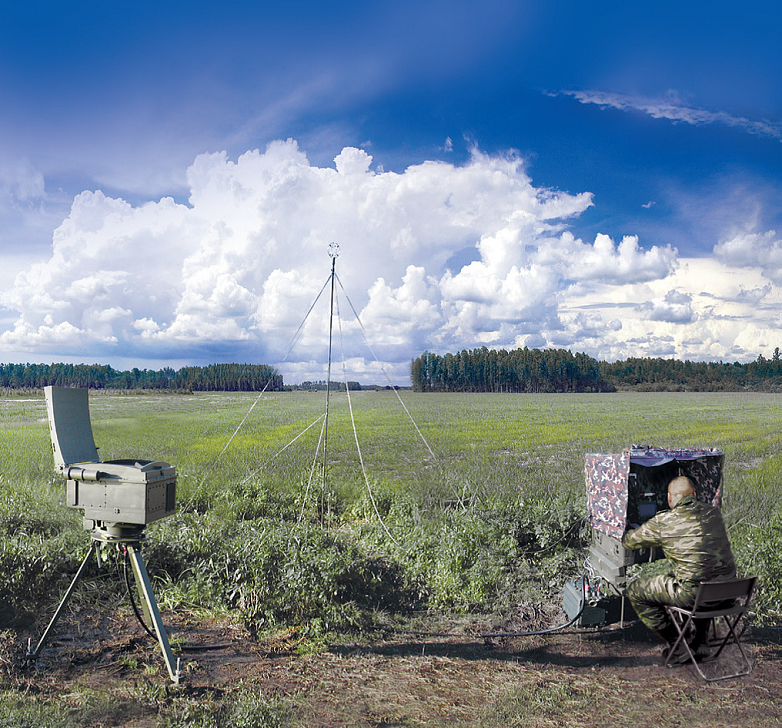

1B67-1 meteorological complex
The meteorological complex 1B67-1 is portable and is intended to measure meteorological parameters at the earth's surface, wind parameters (vertical velocity and direction profile) probeless determination in real time, process them, display and output information
Part number:
Supplier:
СDBA JSCDescription
TACTICAL CHARACTERISTICS
speed measurement and wind direction determination
at altitudes, m,
100-2600
speed measurement and wind direction determination
from the ground to the heights, m,
100-2600
measured wind parameters averaging
in time, min, not more than
10
meteorological parameters measurement and calculation with minimum radar reflectivity of meteorological formations Z not less than 10-2 mmм6/m3 within the actual and average wind speed from the earth's surface to an altitude of 2600 m, m/s,
from 0.3 to 50
average error in the wind speed determination:
а) with a wind speed of up to 10 m/s, m/s, not more than 0,5
б) when the wind speed (V) is more than 10 m/s, m/s, not more than
0,5
0,05V
Real and average wind direction,
from 0 to 60-00
median error of determination
real and average wind directions не более, no more than
01-00
Composition
1. Radar wind profiles.
2. Meteorological kit 1B65.
2. Power supply and switching.
3. The control unit and display information.
4. Tripod.
5. Orientation tool.
