Light multipurpose helicopter Ansat
The multi-purpose light helicopter Ansat is built to a classic single-rotor design with a four blade main rotor and a two-blade tail rotor. The Ansat was developed in line with the latest AP-29 (FAR-29) Category A regulations, and meets high safety standards. The Ansat certified by the Interstate Aviation Committee’s Aviation Register (AR, IAC).
Part number:
Supplier:
Russian HelicoptersDescription

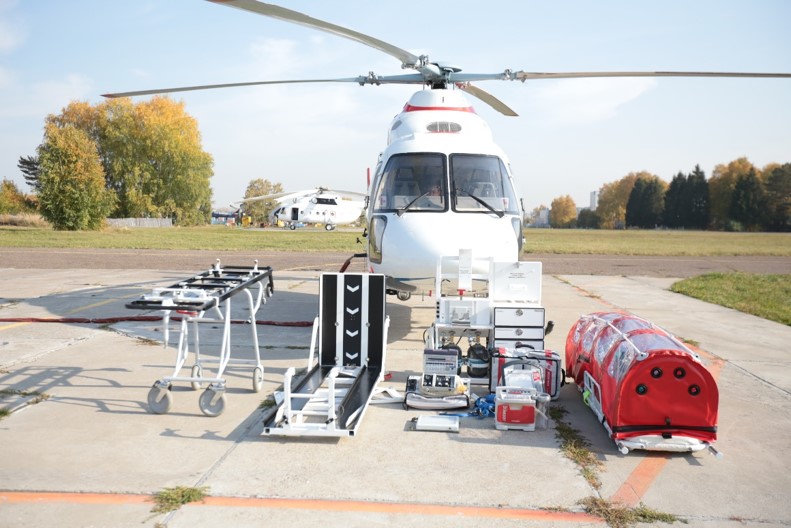

The Ansat can be used to transport cargo and passengers, for surveillance and patroling missions, in search and rescue operations, fire-fighting, and for MEDEVAC missions.

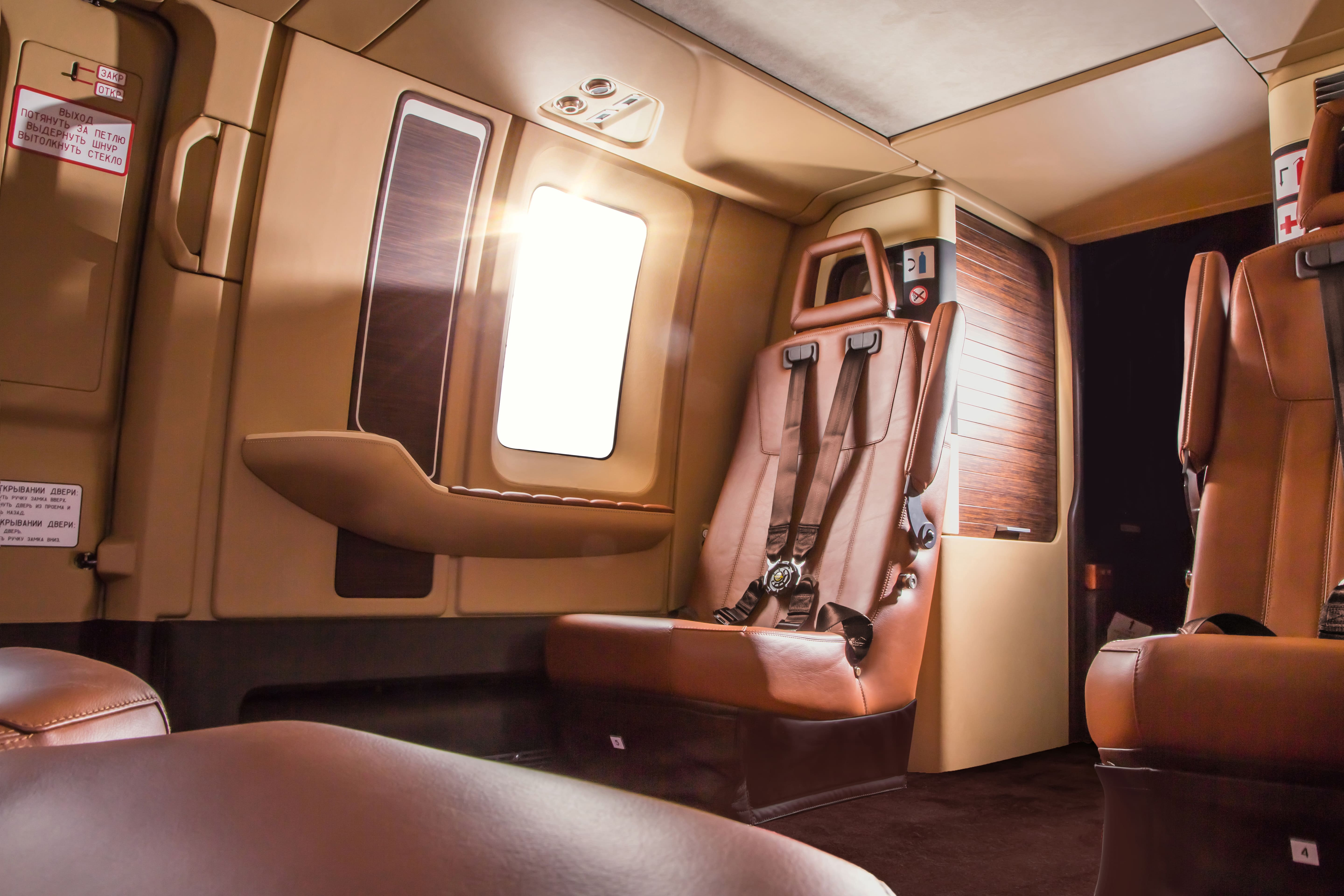

The Ansat boasts the largest cabin in its class and it can be rapidly re-configured. The wide sliding door and large cabin volume allow the comfortable transportation of up to 8 passengers and makes it possible to allocate a maximum amount of equipment in special design versions.
Performance:
Max. cruise Speed – 250 km/h
Max. speed – 275 km/h
Max. flight – 505 km
Hovering in ground effect (MTOW, ISA) – 1 665 m
Service ceiling (MTOW, ISA) – 5 500 m
Weights:
Maximum takeoff weight – 3 600 kg
Max. cabin load – 1 000 kg
Max. external sling load – 1 000 kg
Dimensions:
Length – 11,15 m
Height – 3,65 m
Rotor diameter – 11,5 m
Passenger cabin volume – 6,7 ㎥
Capacity:
up to 8 persons in passenger configuration (PAX)
up to 5 persons in VIP configuration
The Ansat boasts the largest cabin in its class and it can be rapidly re-configured. The wide sliding door and large cabin volume allow the comfortable transportation of up to 8 passengers and makes it possible to allocate a maximum amount of equipment in special design versions.
Performance:
Max. cruise Speed – 250 km/h
Max. speed – 275 km/h
Max. flight – 505 km
Hovering in ground effect (MTOW, ISA) – 1 665 m
Service ceiling (MTOW, ISA) – 5 500 m
Weights:
Maximum takeoff weight – 3 600 kg
Max. cabin load – 1 000 kg
Max. external sling load – 1 000 kg
Dimensions:
Length – 11,15 m
Height – 3,65 m
Rotor diameter – 11,5 m
Passenger cabin volume – 6,7 ㎥
Capacity:
up to 8 persons in passenger configuration (PAX)
up to 5 persons in VIP configuration
Specification
1. АНСАТ_rus.pdf2. ANSAT_eng.pdf
